在當代精密工業製造領域，液壓系統與CNC（Computer Numerical Control, 電腦數值控制）技術的應用日益普遍，特別是在自行車及汽車製造中。其中，液壓萬向螺栓接頭（hydraulic banjo bolt fitting）和CNC自行車鋁蓋是兩種關鍵的組件，它們的精確製造對於整個機械的性能至關重要。本文將深入探討這兩種組件的功能、製造過程及其在業界的應用。
液壓萬向螺栓接頭是一種特殊設計的螺栓，用於連接液壓系統中的軟管與硬件部件，如制動系統中的制動器。這種螺栓通常呈現L形或T形，並且在其體內設有通道，允許液壓油流通。萬向螺栓接頭的設計使得它能夠在有限的空間內提供流體的順暢轉向，這對於複雜的液壓系統非常關鍵，如在摩托車和高性能自行車中常見的制動和變速系統。
萬向螺栓接頭的製造通常依賴高精度的CNC機床加工技術。這些機床能夠進行精確的切削，保證螺栓的每個細節達到技術規格要求，包括螺紋的準確性和油道的內徑。精密的製造不僅確保了接頭的密封性能，還保證了液壓系統的高效運行，避免了液體泄漏和壓力損失。
另一方面，CNC自行車鋁蓋是自行車精密部件的一大創新，特別是在高性能賽車及山地自行車上的應用。這些鋁蓋通常作為車頭部分的裝飾或保護元件，如車頭碗蓋，不僅具有美觀的外觀，還需要具備足夠的強度與耐久性。CNC技術允許製造商根據設計要求，精確加工出複雜的形狀和細節，如公司標誌、通風孔和特殊的固定結構，這些都是傳統加工難以實現的。
CNC自行車鋁蓋的製造過程包括鋁塊的CNC銑削、鑽孔、車削等步驟。這種加工技術不僅提高了產品的生產效率，還大大提升了產品的質量和精度。鋁蓋的表面處理，如陽極氧化，不僅增強了其耐腐蝕性能，還能增加美觀和耐用性，這對於激烈的戶外運動和競賽環境尤為重要。
總的來說，液壓萬向螺栓接頭和CNC自行車鋁蓋在其各自的應用領域中扮演著至關重要的角色。它們的精確加工不僅影響著產品的性能，更是現代高性能設備不可或缺的一部分。隨著技術的不斷進步，這些高精度的組件將繼續推動自行車和汽車製造業向更高的技術水平發展。

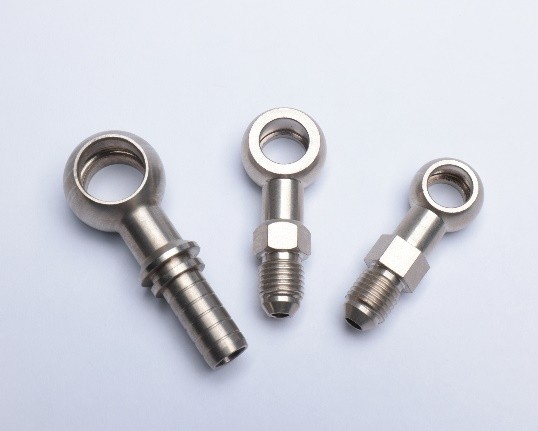

A hydraulic banjo bolt fitting is a specialized component used in hydraulic systems to facilitate the secure connection of flexible hoses to components like brakes, clutches, or other hydraulic devices. The unique feature of a banjo bolt is its hollow construction, which allows fluid to flow through it, making it essential for any system that requires the transfer of hydraulic fluid under pressure.
Design and Functionality
The banjo bolt fitting typically includes a hollow bolt and a perforated hollow ring, known as a "banjo." The bolt passes through the center of the banjo, which is attached to the end of a hose. Fluid flows through the hollow center of the bolt and then through the holes in the side of the banjo into the hose. This design is particularly useful for creating a leak-free seal and providing a smooth fluid path in tight spaces where traditional fittings might not be practical.
Materials and Construction
Banjo bolt fittings are usually made from strong, durable materials like steel, stainless steel, or aluminum, to withstand high pressure without failure. The choice of material depends on the application and the type of fluid being used. For instance, stainless steel is preferred for systems that require corrosion resistance.
Applications
The use of hydraulic banjo bolt fittings is widespread in automotive and motorcycle hydraulic systems, especially in brake and clutch systems. Their efficiency in space utilization and their ability to maintain a leak-proof connection even under high pressure make them ideal for these applications. They are also used in various industrial hydraulic systems where similar space and pressure considerations apply.
Advantages
Compact Design: Banjo bolts are highly valued for their ability to fit into tight spaces, making them ideal for automotive applications where space is limited.
Ease of Installation: The simple design allows for easy and quick installation and maintenance.
Efficient Fluid Flow: The hollow bolt design ensures a continuous flow of fluid, which is crucial for the effective operation of hydraulic systems.
Versatility: They can be used with various types of hoses and fittings, adding to their flexibility in hydraulic system design.
Banjo bolt fittings are crucial in systems where space and reliable fluid flow are critical, combining robust functionality with a compact, efficient design. Their widespread use in both automotive and industrial applications underscores their effectiveness and reliability in hydraulic system designs.

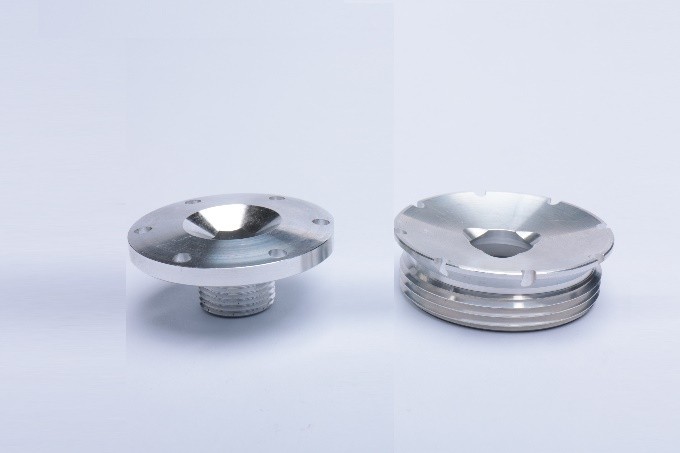

CNC自行車鋁蓋
CNC自行車鋁蓋在自行車製造中，CNC（電腦數控）加工技術被廣泛用於生產精密的鋁製零件，包括自行車鋁蓋。這些鋁蓋可以是頭碗蓋、軸承蓋或其他保護性蓋板，它們在自行車的多個關鍵部位發揮著重要作用。
功能與設計
CNC自行車鋁蓋的主要功能是保護內部零件免受塵土、水分和其他外界因素的侵害，同時提供結構上的支持和增加美观。例如，頭碗蓋不僅保護頭碗內的軸承免受污染，還可能承擔調整頭碗緊固度的功能。
材料與製造
這些鋁蓋通常使用高強度鋁合金製成，如6061或7075鋁合金，這些材料因其卓越的力學性能和較輕的重量而受到青睞。通過CNC加工，製造商能夠精確切割和雕刻鋁材，創造出複雜的形狀和精細的細節，這在傳統加工技術中往往難以實現。
應用
自行車的CNC鋁蓋不僅限於專業賽車或高端自行車，越來越多的休閒自行車和通勤自行車也開始使用這些高精度的零件。這些蓋板的應用提升了整車的耐用性和性能，同時也增強了外觀的吸引力。
優點
耐用性：CNC鋁蓋由於使用了高質量的鋁合金，具有優異的耐腐蝕性和耐磨性。
精確的適配性：CNC技術能夠生產出高度一致和精確適配的零件，確保了安裝的緊密性和完美配合。
定制潛力：由於CNC加工的靈活性，製造商可以根據客戶的需求提供定制的設計，包括不同的形狀、尺寸和顏色。
結論
CNC自行車鋁蓋是當代自行車設計中不可或缺的一部分，它們以其精確的製造工藝、優異的物理性能以及美觀的外觀設計，滿足了現代騎行者對自行車性能和外觀的雙重需求。隨著技術的進步，這些CNC加工的零件將繼續在自行車工業中扮演關鍵角色。
